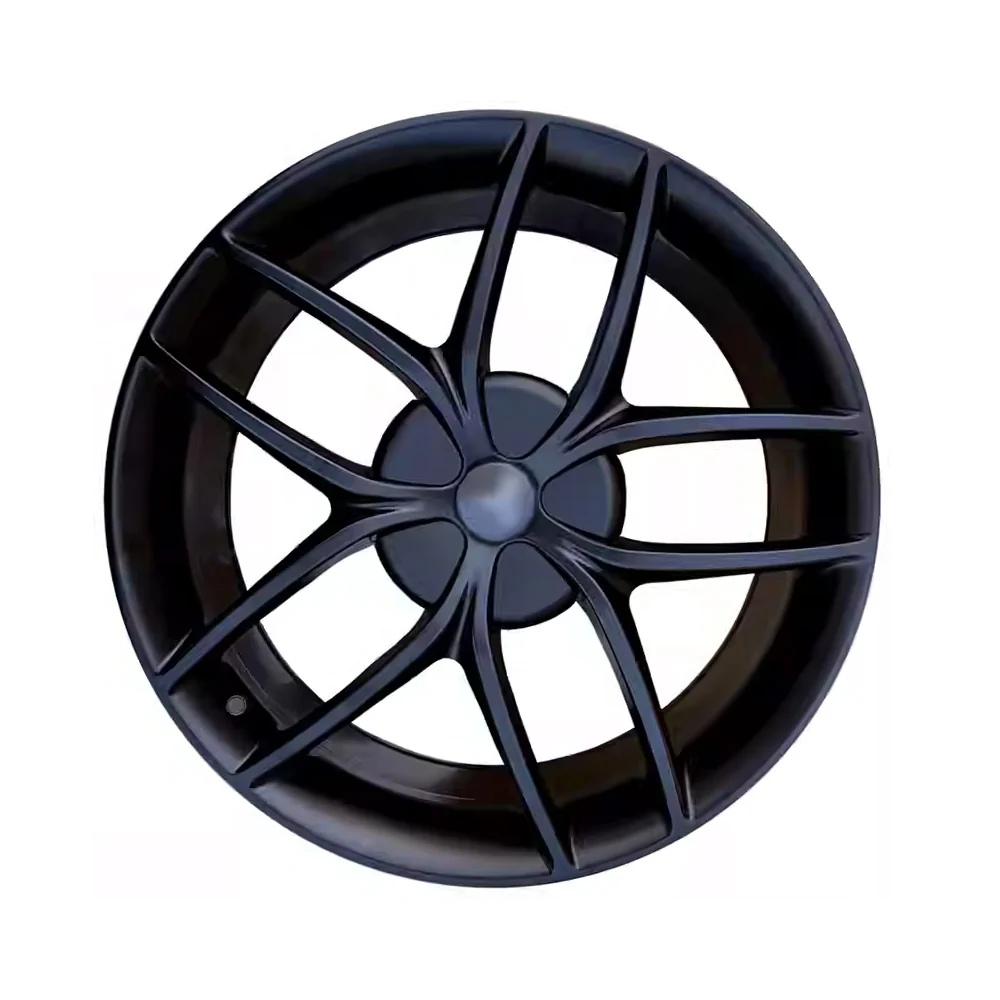

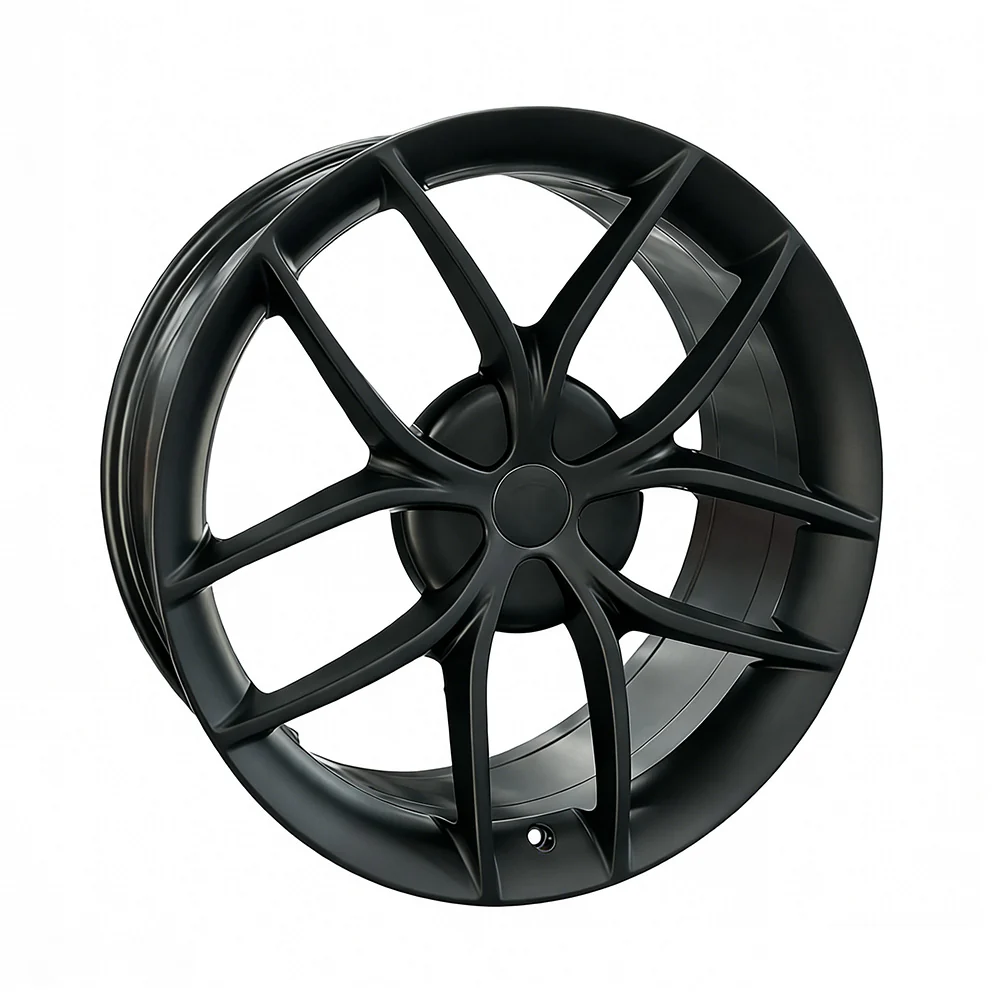

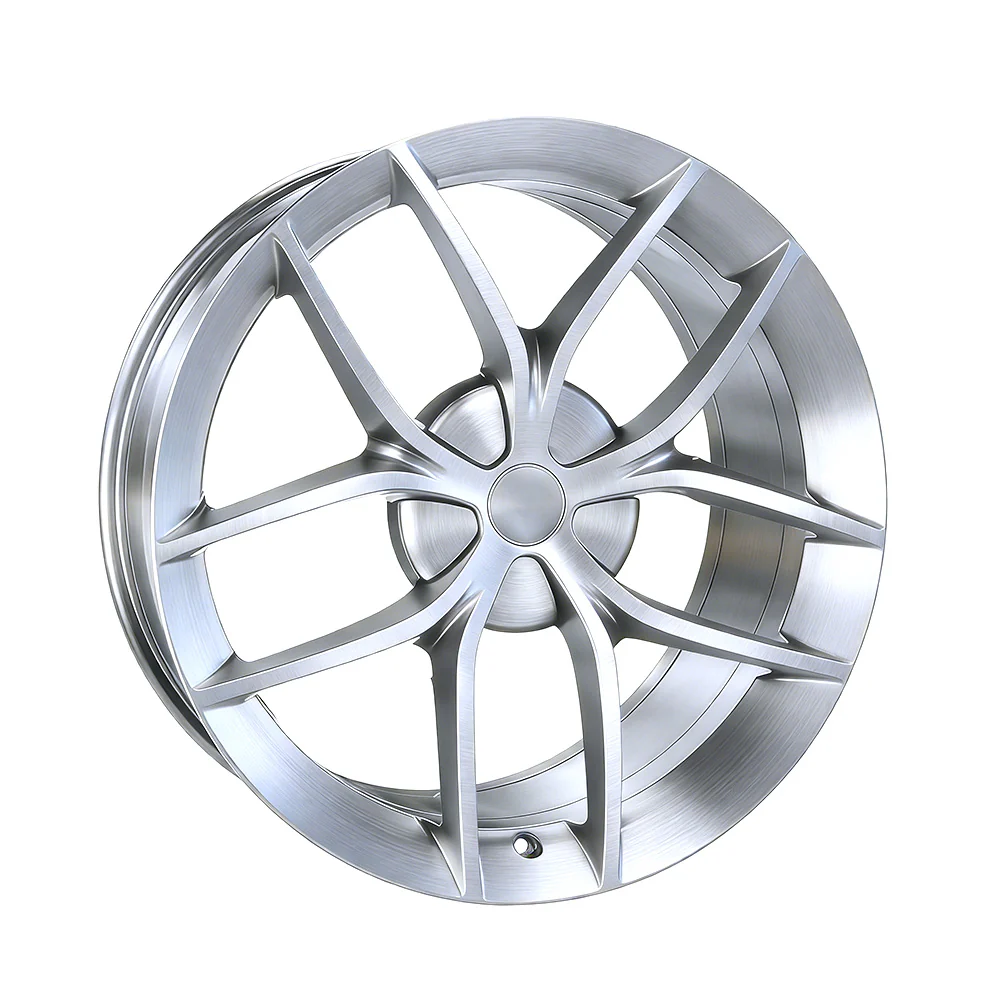

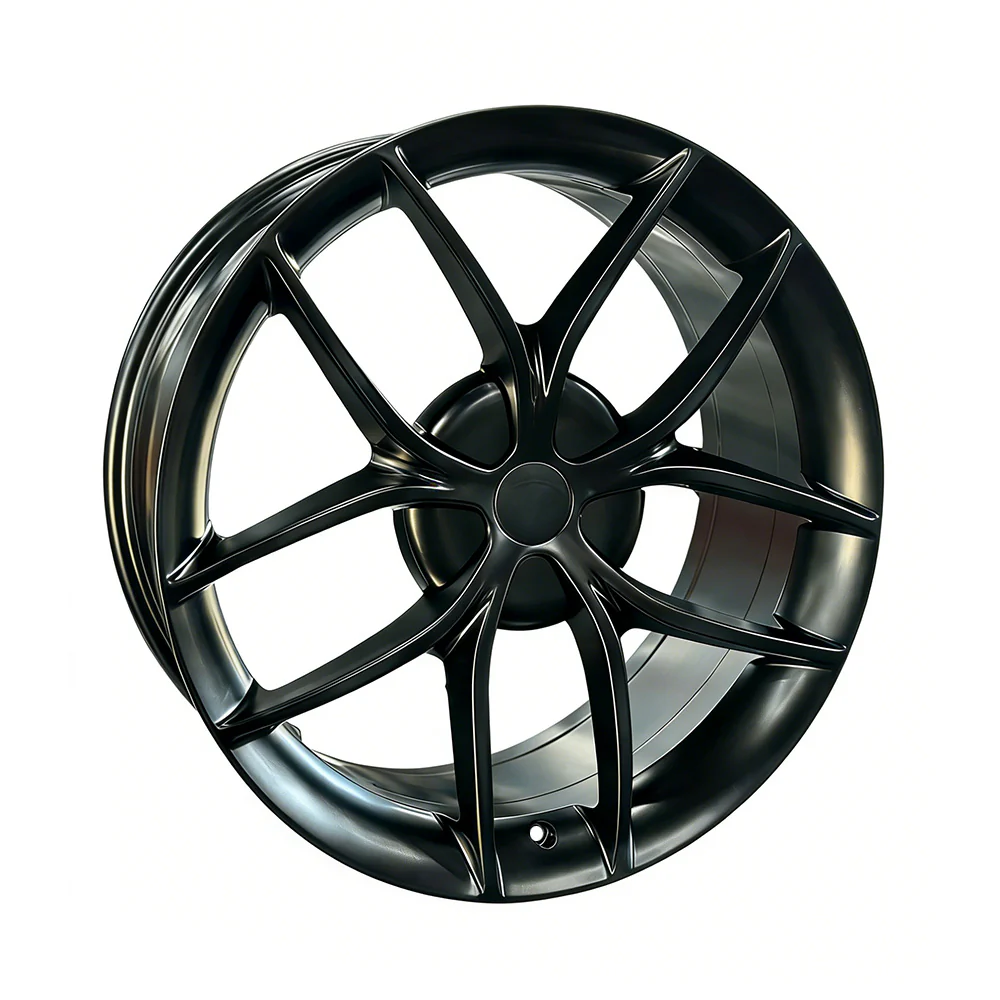

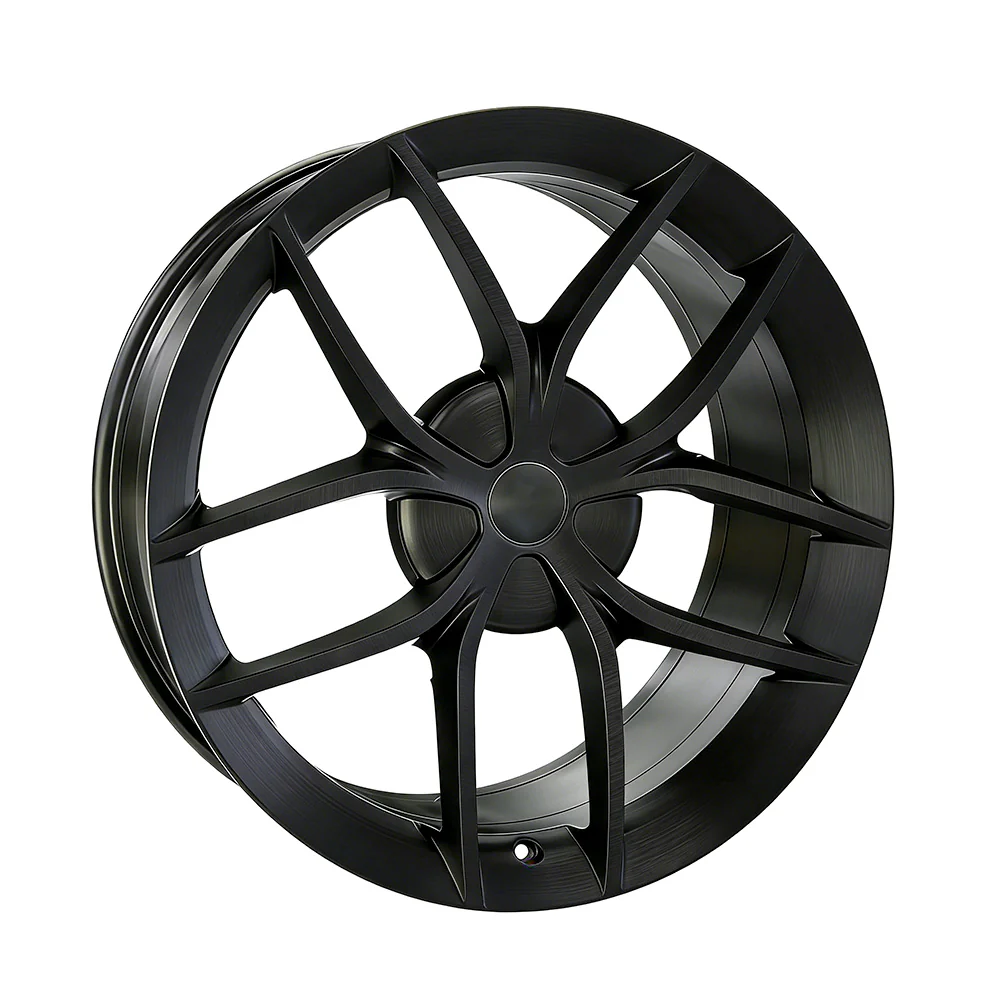

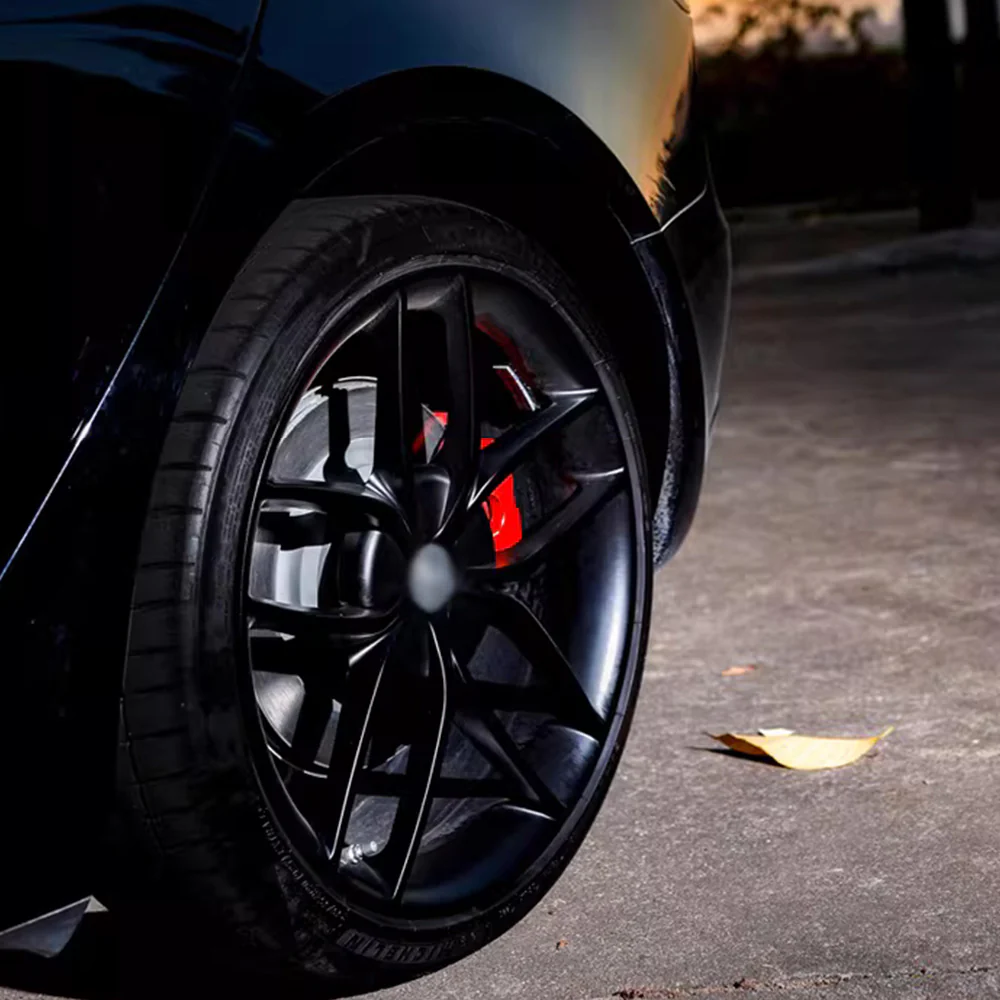

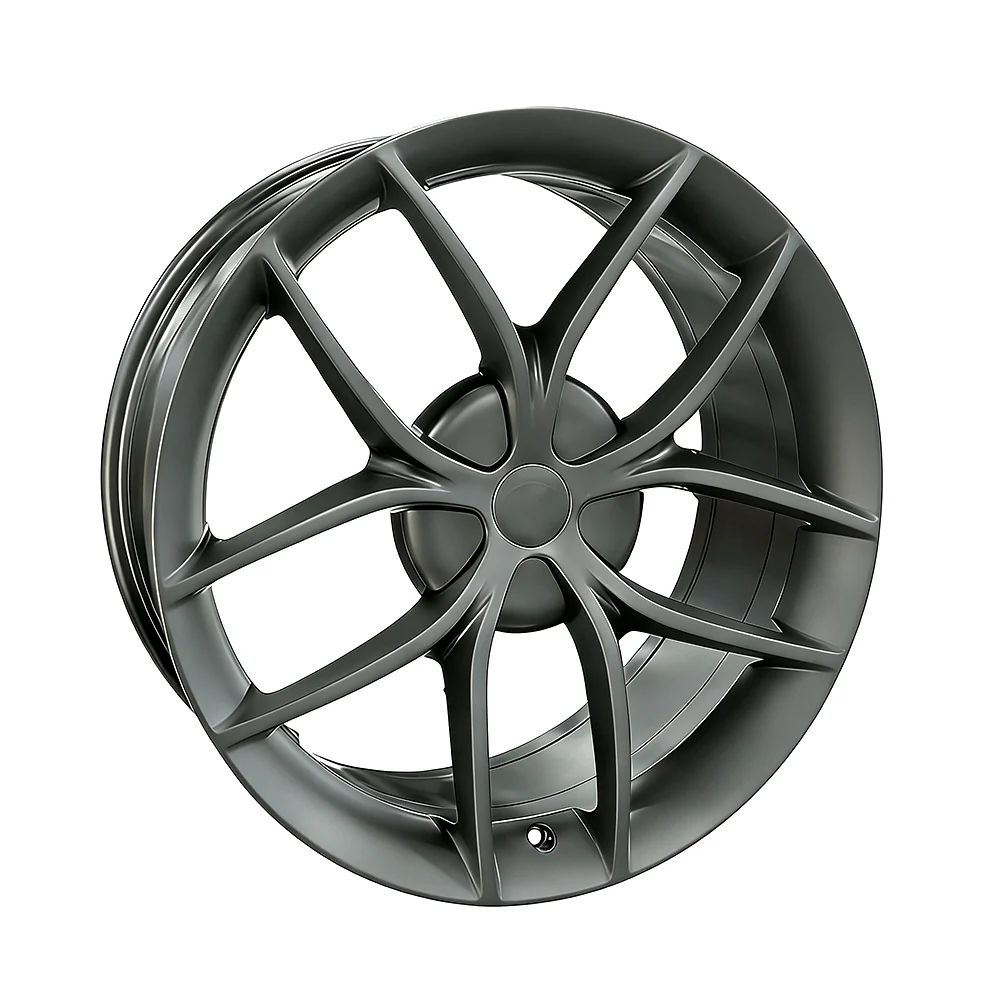

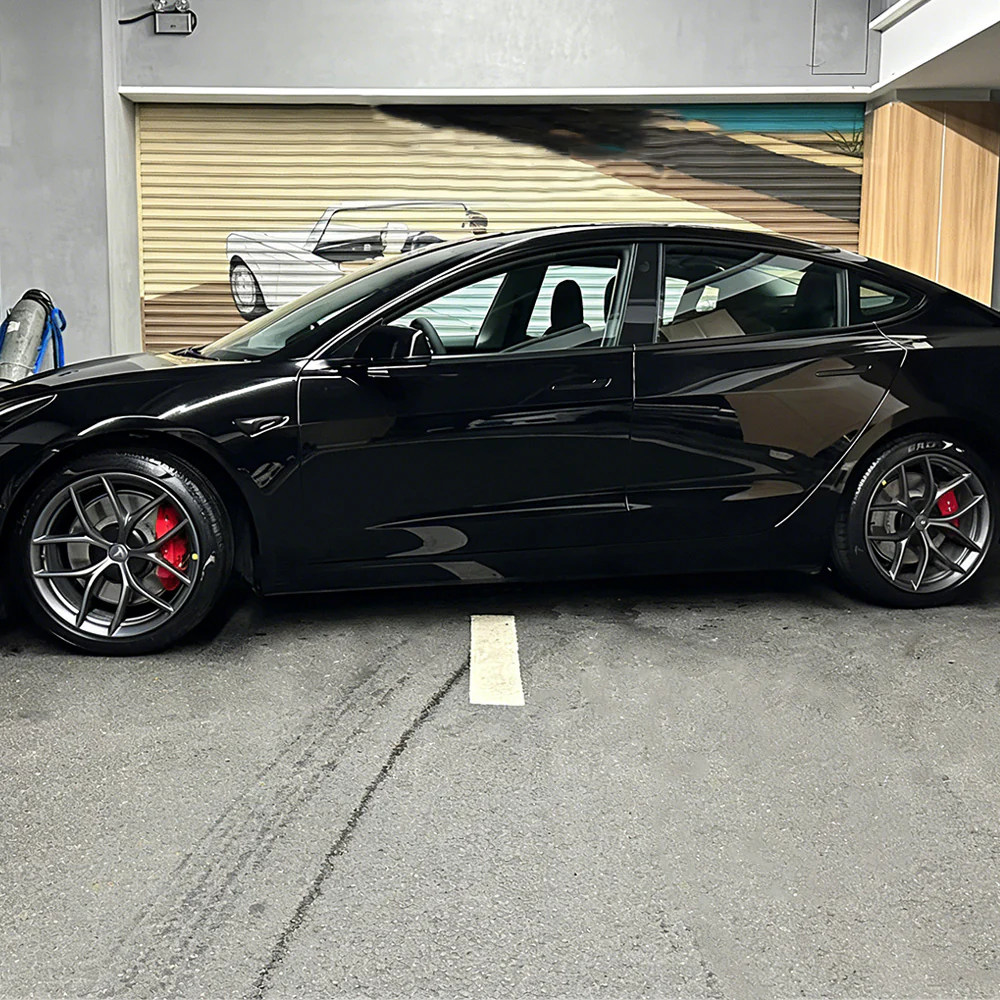

Vector Series Wheels for Tesla Model 3/3 Highland 18"-20" Set of 4 | Tlyard Fully Forged

The Vector Series is a masterclass in functional minimalism, inspired by the legendary Zero-G track heritage. Specifically engineered for the Tesla Model 3 and Model 3 Highland, these wheels are designed to bridge the gap between daily efficiency and track-ready performance. By utilizing a high-pressure Fully Forged process, we’ve stripped away the bulk of traditional cast wheels, leaving a lean, high-tension "Vector" architecture that complements the Model 3’s sharp handling and the Highland’s refined aerodynamics.

Technical Specifications

Series Name	Tlyard “Vector” Series
Construction	One-Piece (Monoblock) Forged
Material	6061-T6 Aerospace Aluminum Alloy
Vehicle Fitment	Tesla Model 3 & Model 3 Highland (All Variants)
Wheel Diameter	18″ / 19″ / 20″ (Customizable)
PCD (Bolt Pattern)	5×114.3
Center Bore (CB)	64.1 mm
Lug Nut Spec	M14×1.5
Finish Options	Gloss Black/Satin Gunmetal/Antique Bronze(Customizable)
Load Rating	900 kg/1984 lbs per wheel (Safety Certified)



Detailed Size & Weight Matrix

Size	Width & Offset	Tire Recommendation	Estimated Weight (per piece)
18"	18x8.5" ET+35	235/45-18	~11.5 kg (25.4 lbs)
19"	19x8.5" ET+35	235/40-19	~12.75 kg (28.1 lbs)
20"	20x9.0" ET+35	235/35-20	~13.5 kg (29.8 lbs)



Fully Forged 6061-T6 Strength
Unlike heavy flow-formed or cast alternatives, each Vector wheel is forged from a solid block of aerospace-grade 6061-T6 aluminum. This 10,000-ton forging process creates a wheel that is significantly lighter than the factory 18" or 19" wheels, drastically reducing unsprung weight for sharper turn-in and improved suspension damping.

Linear Vector Spoke Logic
The "Vector" design philosophy focuses on the shortest path of structural support. Each Y-spoke is a calculated vector of strength, designed to handle the high instantaneous torque of Tesla’s electric motors. This ensures maximum rigidity under hard acceleration and high-speed cornering without unnecessary material weight.

Optimal Brake & Caliper Clearance
Engineered with a Performance-spec offset, the Vector Series provides ample clearance for both standard and oversized "Performance" brake calipers. The open-spoke architecture allows for rapid heat dissipation, keeping your braking system cool and consistent during demanding drives.

Enhanced Range & Efficiency
Every gram counts in an EV. By optimizing the spoke thickness and using forged aluminum, the Vector Series helps minimize rotational inertia. This contributes to better energy efficiency (Wh/mi), helping you maintain or even improve your range compared to heavier aftermarket options.

Frequently Asked Questions (FAQ)

Q1: What are the shipping options and delivery times?

Shipping Method & Cost	Destination	Estimated Time
Standard Sea Shipping (FREE)	Global	Approximately 30-35 days
Expedited Air Freight ($500 USD)	Global	Approximately 15 days after production is complete



Q2: How long does the custom production take?

Each Tlyard Forged wheel is custom-forged and precision CNC-machined to your exact specifications.The standard production lead time is approximately 20 days.

Q3: How much weight will I save by upgrading to Tlyard Forged wheels?

• For the same size and style, forged wheels are typically about 10%–25% lighter than cast wheels.

Q4: Are forged wheels stronger than the original factory wheels?

• Yes, forged wheels offer superior durability.
• While most factory wheels are cast for mass production, our forging process creates a much denser and more refined metal structure.
• This results in significantly higher structural strength and impact resistance.

Q5: Do I need to buy new tires?

• If you choose the same diameter as your original wheels (e.g., 19" to 19"), you can reuse your existing tires.
• If you upgrade to a larger diameter (e.g., upgrading from 19" to 20" or 21"), you will need to purchase new tires matching the updated specifications.

Q6: Can I customize the style, size, or color?

• Absolutely, we offer comprehensive customization services.
• Our professional team[[email protected]] will work closely with you to ensure the final product matches your exact preferences for your Tesla.
