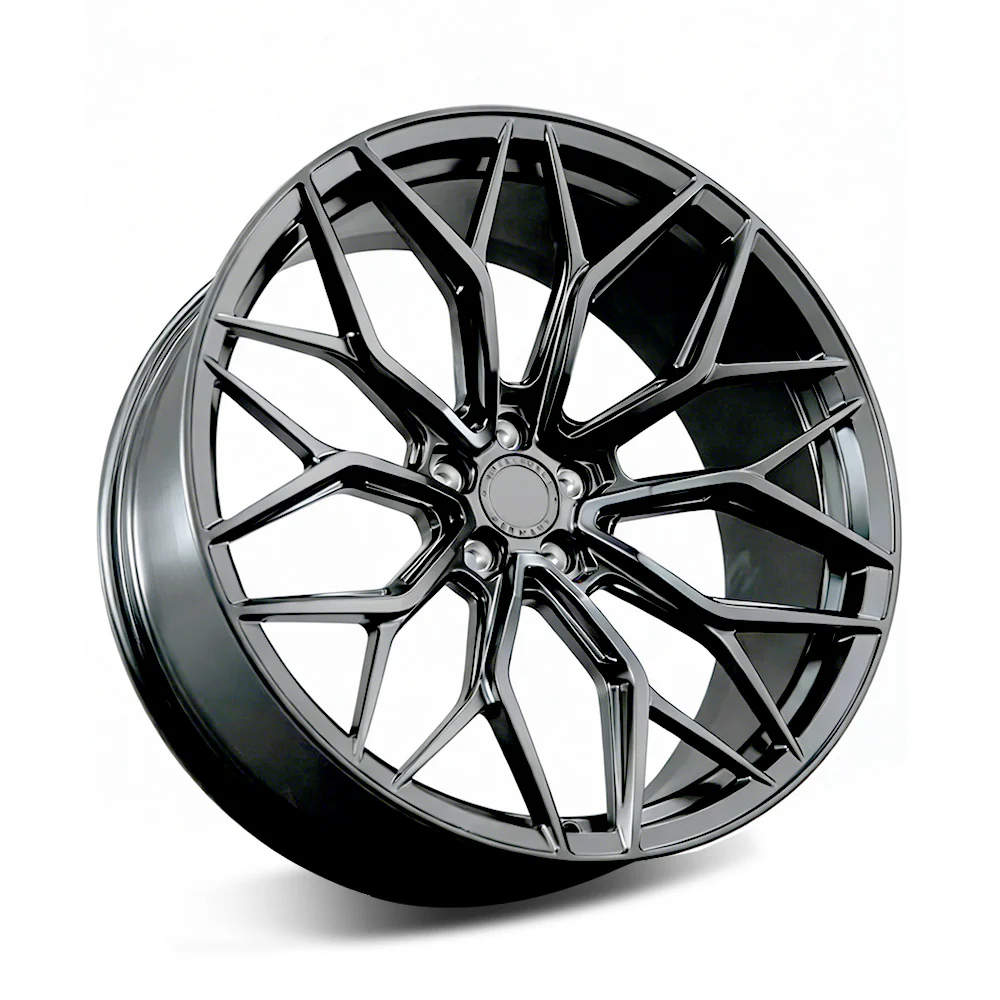

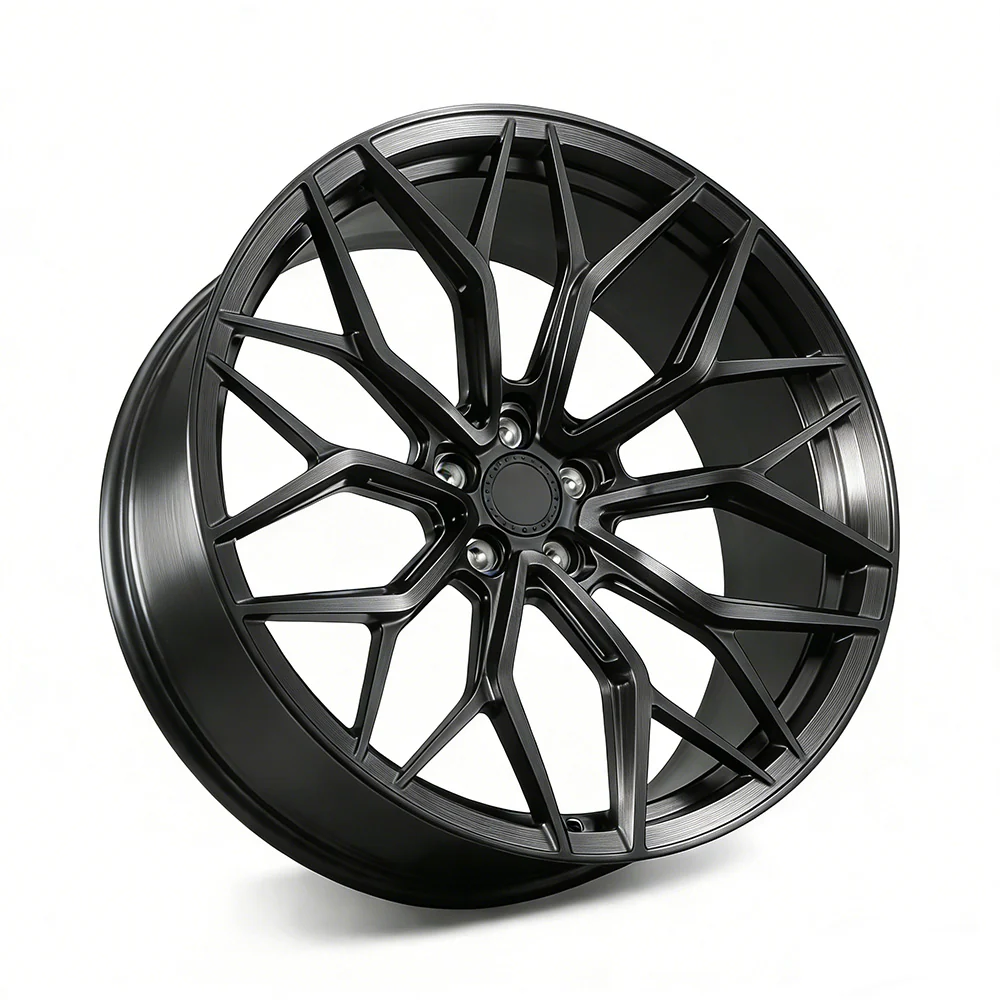

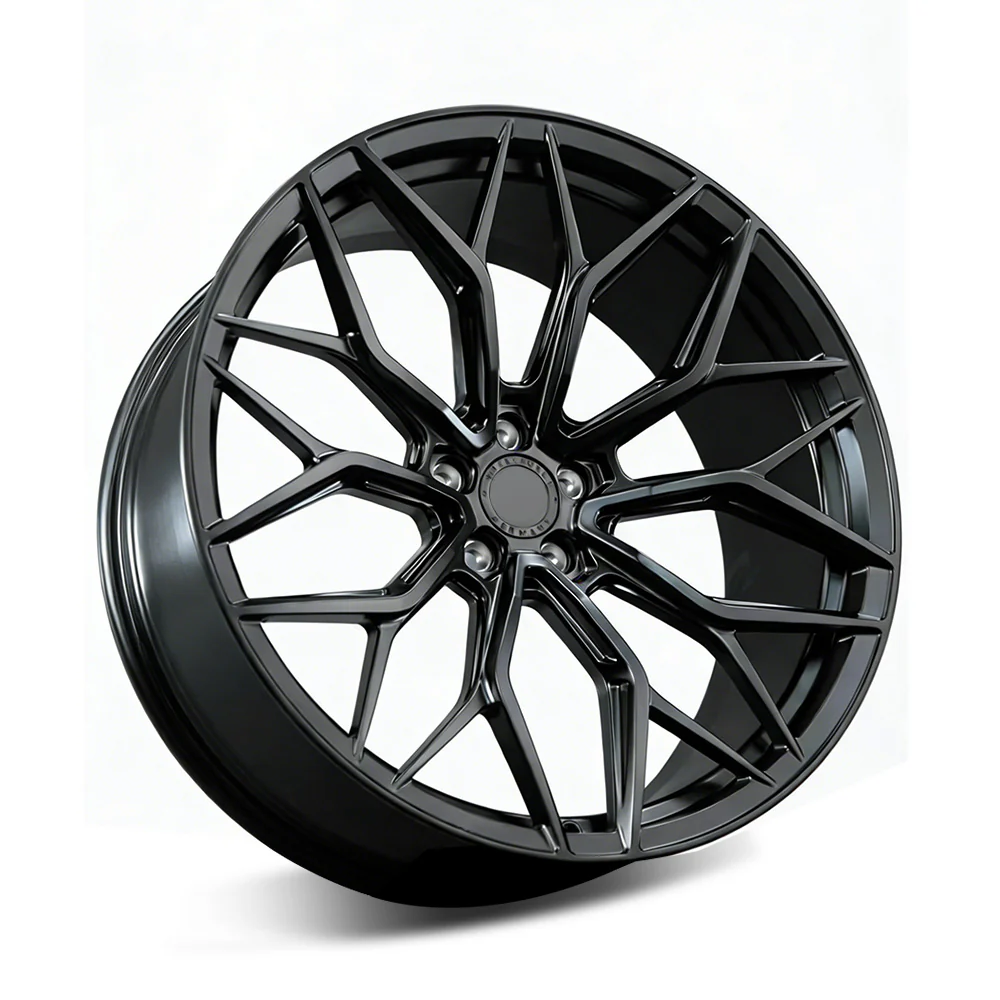

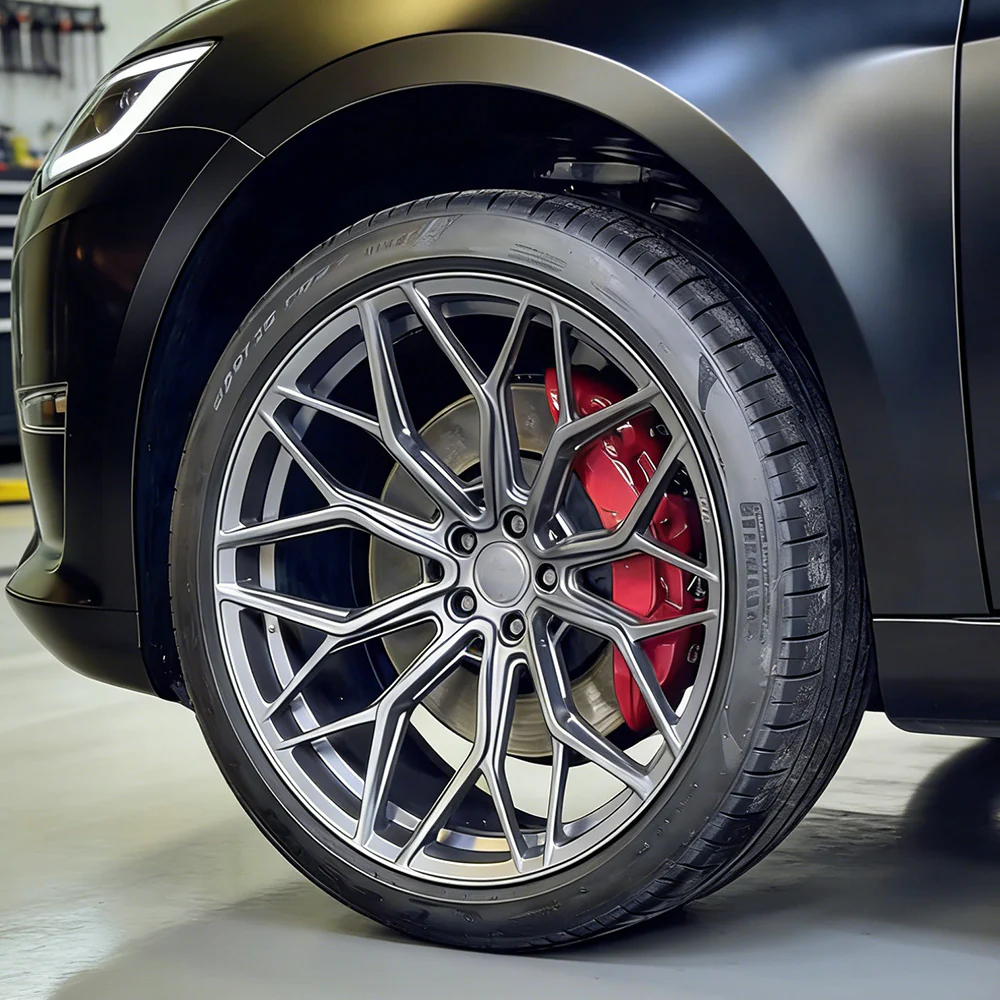

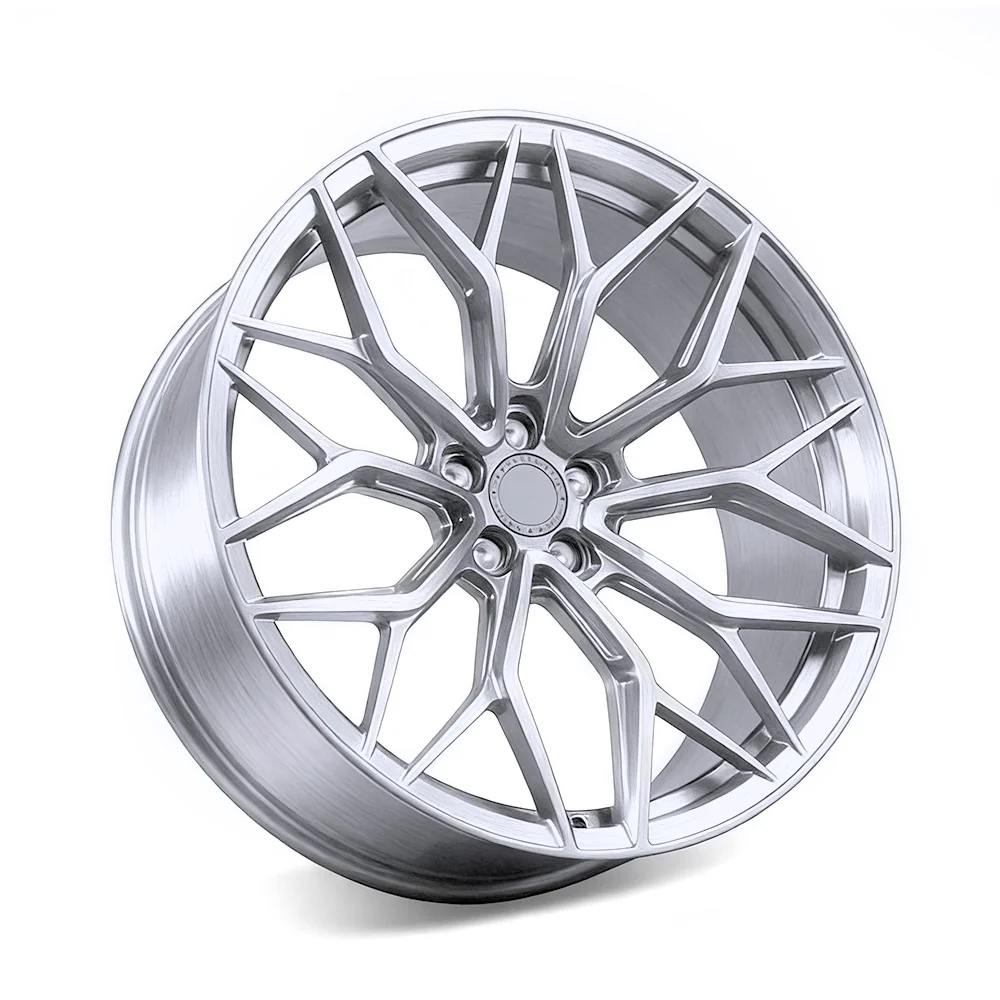

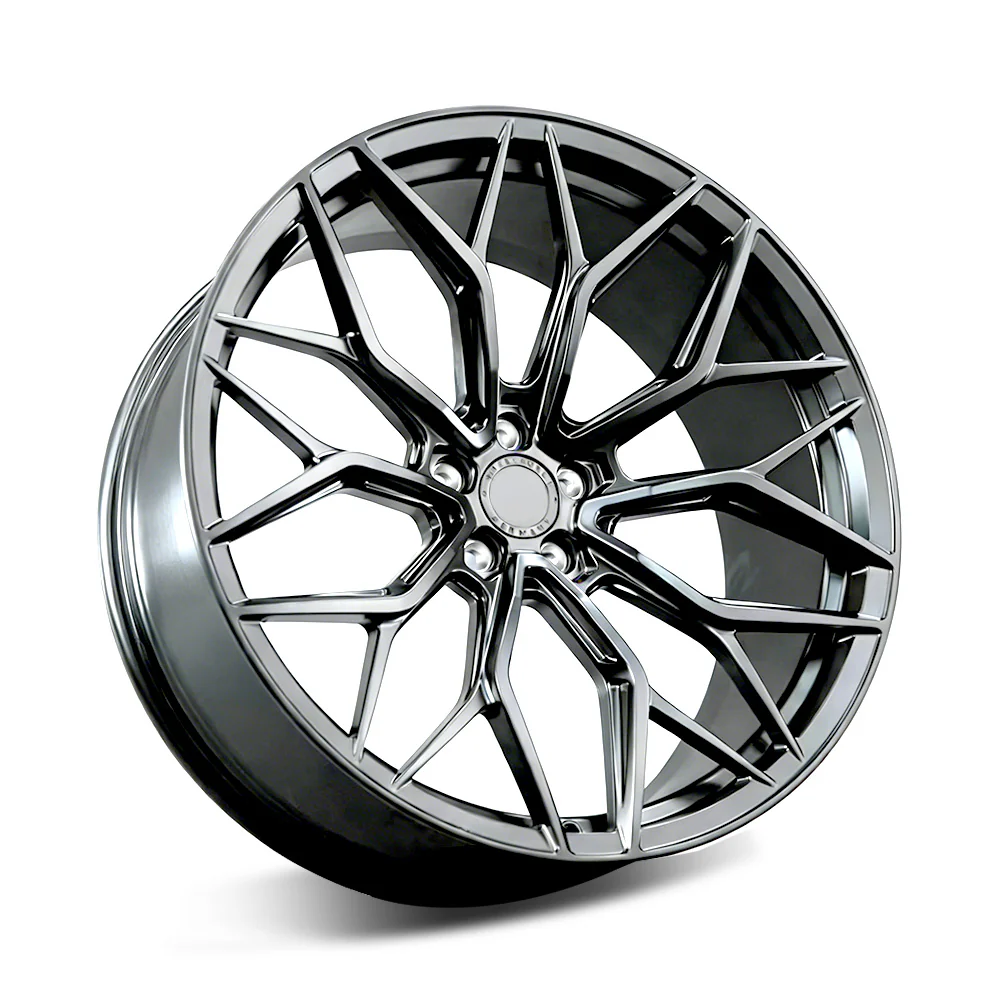

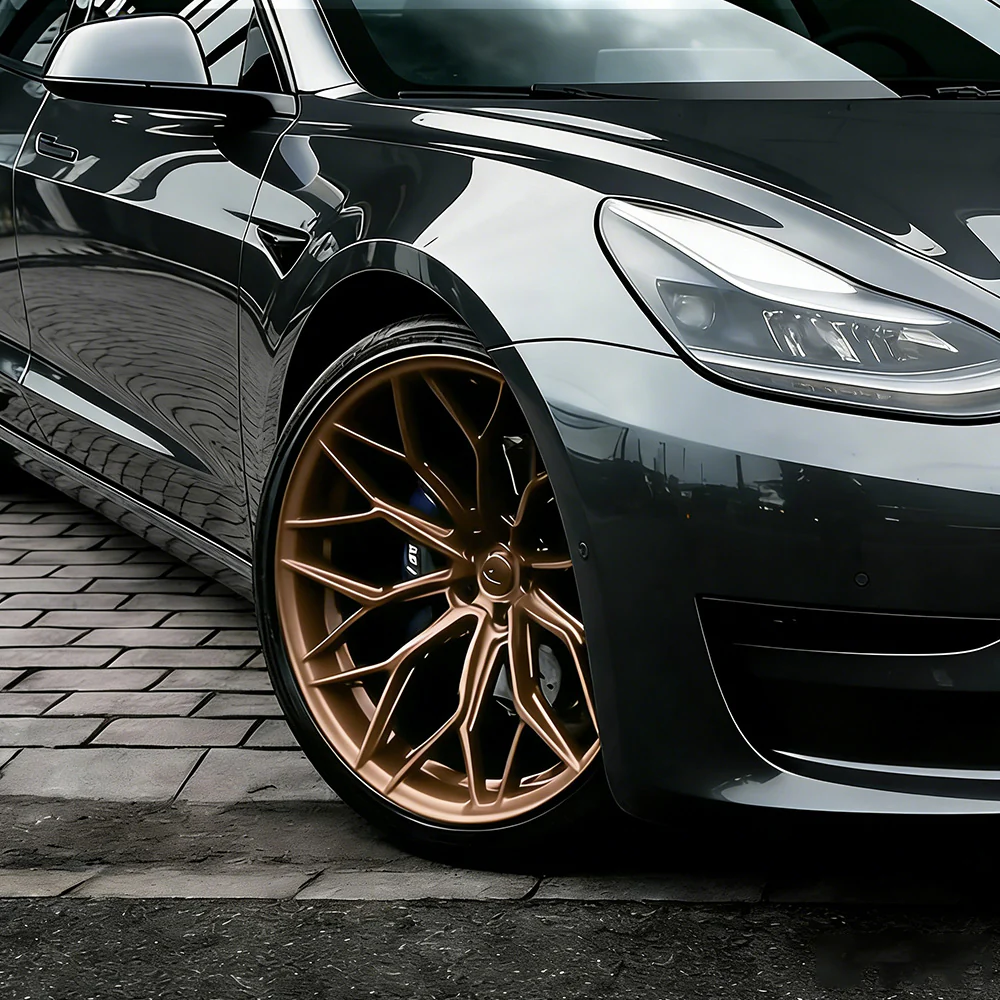

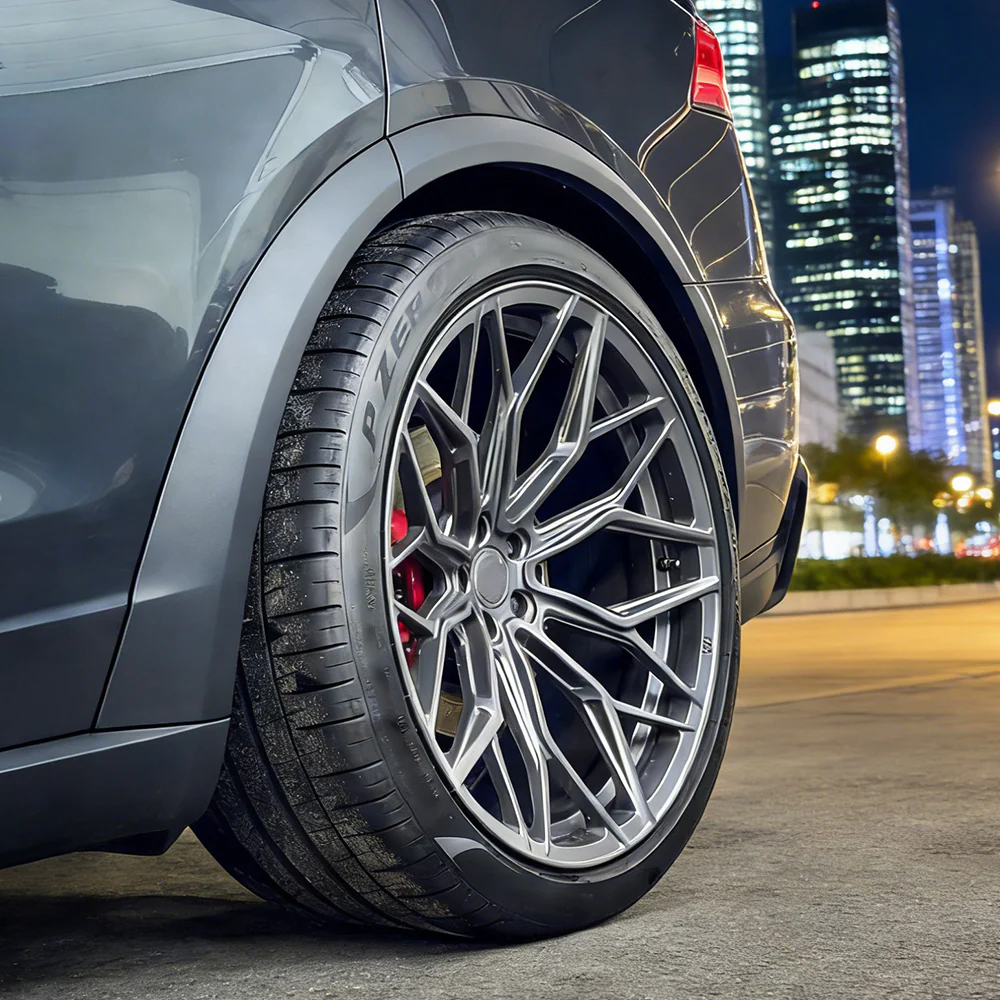

Thorn Series Wheels for Tesla Model Y 19"-21" Set of 4 | Tlyard Fully Forged Deep Concave

Experience the pinnacle of Tesla performance with the Tlyard Thorn Series Fully Forged Wheels. Unlike standard cast wheels, our Thorn series is CNC-machined from a solid block of 6061-T6 aerospace-grade aluminum. This results in a wheel that is significantly lighter and stronger than factory options. Designed for the discerning Model Y owner, these wheels offer a jaw-dropping deep concave aesthetic without compromising the structural integrity or the efficiency of your Performance, Long Range, or RWD Tesla.

Technical Specifications

Series Name	Tlyard “Thorn” Series
Construction	One-Piece (Monoblock) Forged
Material	Aerospace-Grade Aluminum Alloy
Vehicle Fitment	Tesla Model Y (RWD / Long Range / Performance)
Wheel Diameter	19″ / 20″ / 21″ (Customizable)
PCD (Bolt Pattern)	5×114.3
Center Bore (CB)	64.1 mm
Lug Nut Spec	M14×1.5
Finish Options	Gloss Black/Satin Gunmetal/Antique Bronze(Customizable)
Load Rating	900 kg/1984 lbs per wheel (Safety Certified)



Detailed Size & Weight Matrix

Size	Width & Offset	Recommended Tire	Weight (Est. Per Piece)
19″	19×9.5″ ET+35	255/45-19	~12.75 kg (28.1 lbs)
20″	20×10″ ET+40	255/40-20	~13.5 kg (29.8 lbs)
21″ (Staggered)	F: 21×9.5″ ET+32 R: 21×10.5″ ET+40	F: 255/35-21 R: 275/35-21	~14.0 kg (30.9 lbs)



⚙️Aerospace-Grade 6061-T6 Aluminum: Fully forged construction ensures maximum strength-to-weight ratio, providing a safer and more responsive drive.

⚙️Unmatched Lightweighting: Reducing unsprung weight is key for Teslas. Our forged Thorn wheels help improve acceleration, braking, and even range compared to heavy cast alternatives.

⚙️Extreme Deep Concave: Forging allows for thinner, sharper spokes and a deeper center drop that simply isn't possible with casting—giving your Model Y a true "supercar" stance.

⚙️Precision Engineering for Tesla: Optimized specifically for the Tesla Model Y (all variants) to ensure perfect hub-centric fitment and compatibility with OEM TPMS sensors.

⚙️Infinite Customization: Because each set is forged-to-order, we offer premium finishes including Brushed Black, Antique Bronze, and Satin Gunmetal with exquisite surface detail.

Frequently Asked Questions (FAQ)

Q1: What are the shipping options and delivery times?

Shipping Method & Destination	Cost	Estimated Time
Standard Sea Shipping -Global	FREE	Approximately 30-35 days
Expedited Air Freight -Global	$500 USD	Approximately 15 days after production is complete



Q2: How long does the custom production take?

Each Tlyard Forged wheel is custom-forged and precision CNC-machined to your exact specifications.The standard production lead time is approximately 20 days.

Q3: How much weight will I save by upgrading to Tlyard Forged wheels?

• For the same size and style, forged wheels are typically about 10%–25% lighter than cast wheels.

Q4: Are forged wheels stronger than the original factory wheels?

• Yes, forged wheels offer superior durability.
• While most factory wheels are cast for mass production, our forging process creates a much denser and more refined metal structure.
• This results in significantly higher structural strength and impact resistance.

Q5: Do I need to buy new tires?

• If you choose the same diameter as your original wheels (e.g., 19" to 19"), you can reuse your existing tires.
• If you upgrade to a larger diameter (e.g., upgrading from 19" to 20" or 21"), you will need to purchase new tires matching the updated specifications.

Q6: Can I customize the style, size, or color?

• Absolutely, we offer comprehensive customization services.
• Our professional team[[email protected]] will work closely with you to ensure the final product matches your exact preferences for your Tesla.
